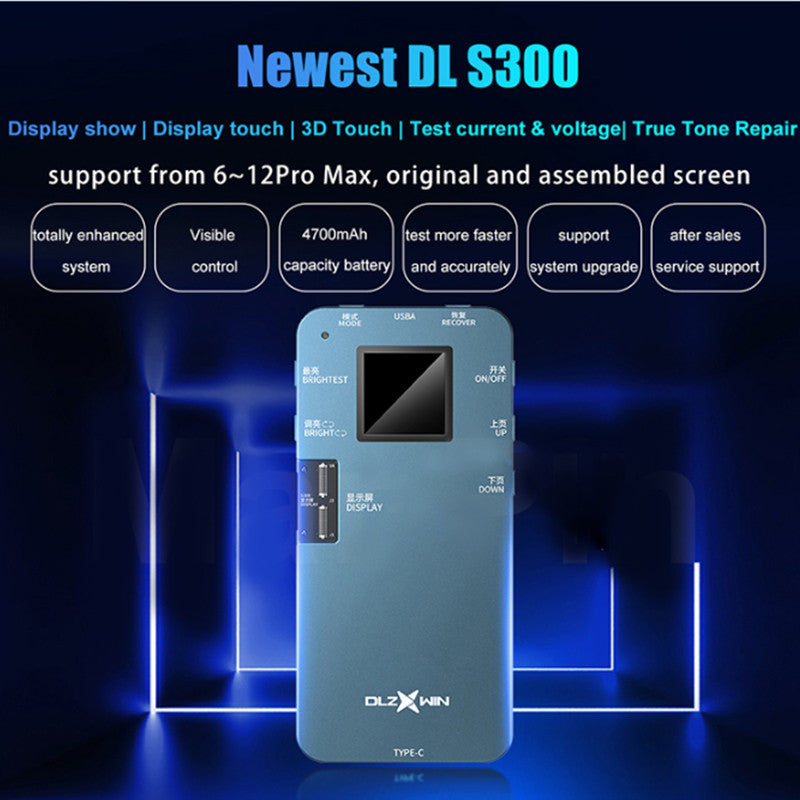

DL S300 ITestBox Display Touch Multi-Function Tester For IPhone

1. One host machine + extension test flex cable to test the display and touch functions of iPhone.
2. Currently, the DL S300 LCD Screen Display Tester Box allows connecting with the flex cables BOTH OF iPhone and Huawei.
3. Suitable for repair store/parts distributor/refurbishing facility, second-hand dealer, etc.

Main Functions

• Test display, and 3D touch functions
• True Tone repair

Features

• Multi-point track test

Record the test track, easy for users to determine whether the touch support multi-point, track whether to follow the hand, whether smooth, whether broken line and other issues.

• Can be tested separately touch

Touch trajectory display on the machine comes with a small screen, convenient for users to test the touch alone.

• Display test

Display multiple pictures of different colors, comprehensive testing of screen display problems, support users to import custom pictures.

• 3D Touch test

Full screen pressure test at any position, red and green squares graded to show the change in pressure size.

• Simple touch test mode

Green box to form a closed loop, the test passed; any place to interrupt or jitter, touch bad.


Support model:

For iPhone: 6/6S/6SP/7/7P/8/8P/X/XS/XS Max/XR/11/11 Pro/11 Pro Max/12/12 mini/12 Pro/12 Pro Max/13/13 mini

For Samsung: S8/ S8+/ S9/S9+/ S10/S10+/ S10E/ S20/S20+/S20U/ S20FE/ S21/S21+/ S21U/ M0TE8/ H0TE9/ NOTE10/ MOTE10+/ NOTE10Lite/ NOTE20/ NOTE20U/ A90 5G (A908)/ A80 (A805) /A70 (A705)/ A71 4G (A715)/ A52 4G (A525)/ A51 4G (A515) / A42 5G (A426)/ A32 5G (A326)/ A31 4G (A315)

Notes

S300 only supports the reading function of the iPhone 12 series, and the True Tone is excepted. As for other cables, please leave a message for the required model number while placing an order.
