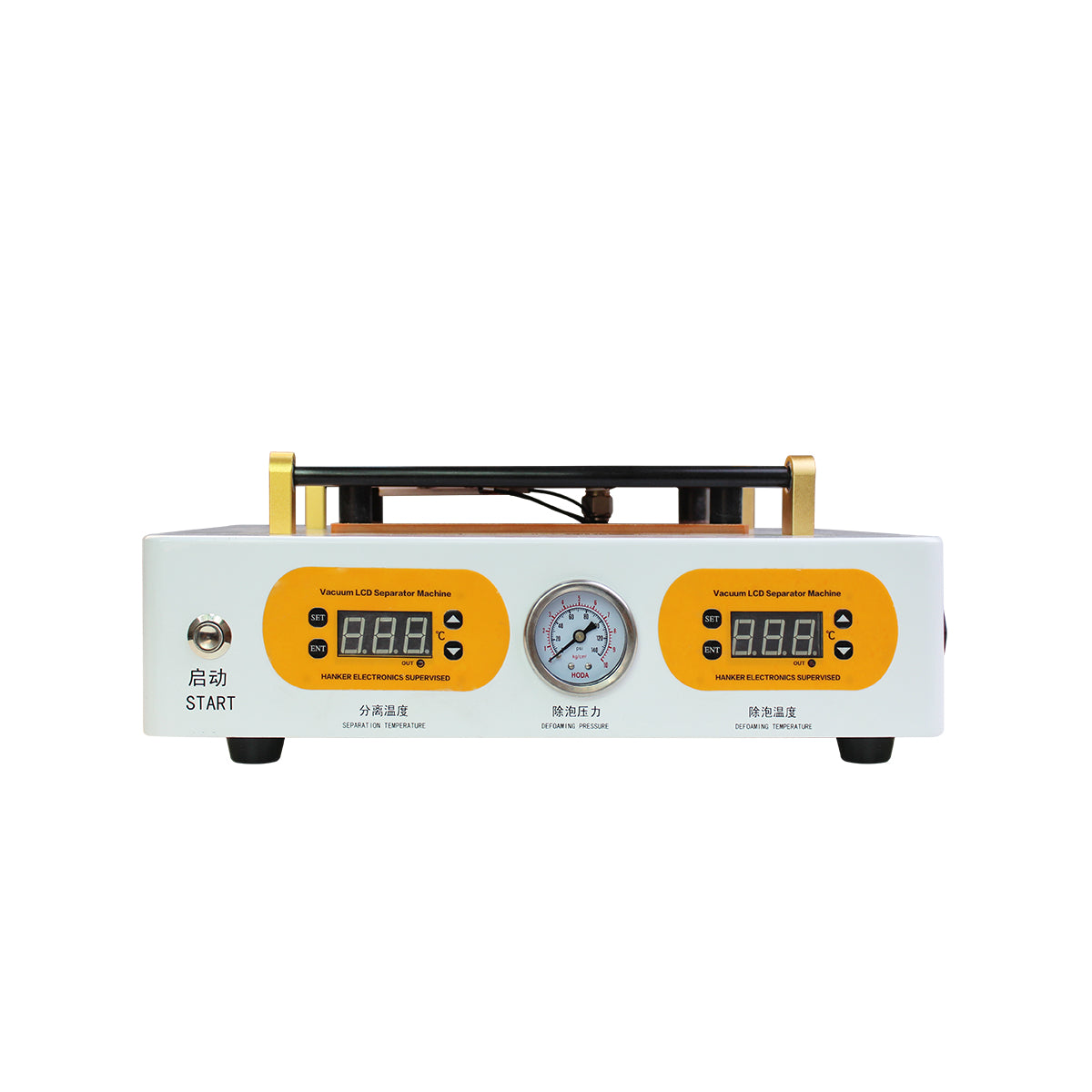

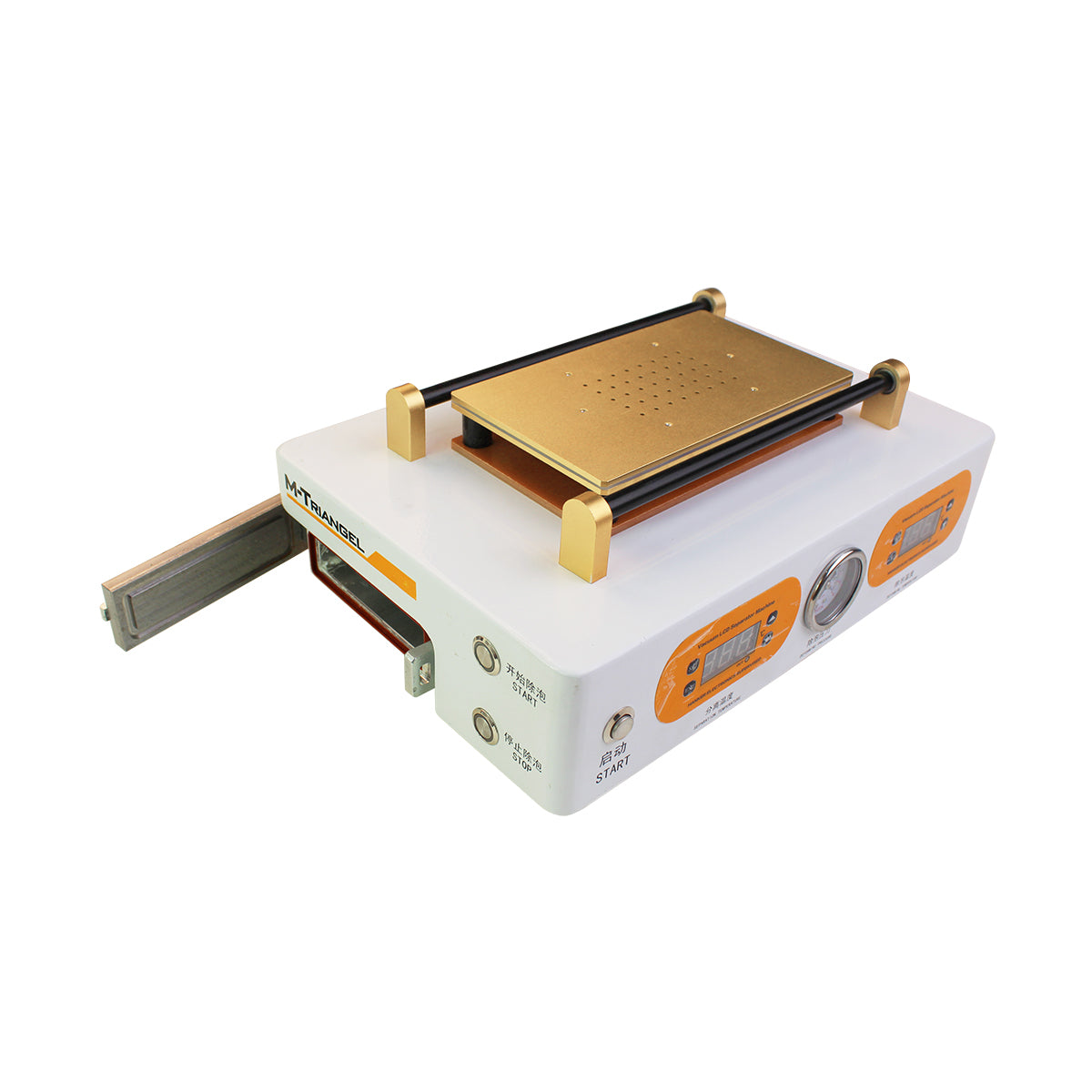

M2 OCA Bubble Removal with Separator 2in1

M-Triangel M2 is an excellent bubble remover with separator 2-in-1 cell phone screen repair platform with aluminum body and pure copper heating plate, intelligent constant temperature heating, supports 7" mobile device screen repair and takes only 30 seconds to remove bubbles.

Product Features:

• Suitable For touch mobile phone with 7inches,(Including Curved Screen and straight LCD)
• Double-Layer Copper Pate, Faster And More Uniform Heating
• Aluminum Alloy Case, Strong And Durable
• High Pressure Defoaming Machine, Shorter Defoaming Time
• Compatible for LCD or LED screen assembly
• High Efficiency, Stable Performance

Product Parameters:

• Equipment power supply: AC110V, AC220V
• Suggested separator temperature: : 80-85 ℃
• Suggested defoaming temperature: 30-40°C

• Suggested bubble removal pressure: 100PSI
• Efficiency: no support for 30 seconds/piece, with stent 60 seconds/piece
• Heating way: constant temperature heating
• Applicable size: ≤7" LCD
• Equipment size: 350 * 180 "88 mm
• Equipment weight: net weight 6.1 kg
• Equipment power: 300 W

Bubble parameters

• The depth of the cavity size: 205 mm, 95 mm in diameter, 18 mm (7 inches)
• high Working temperature: advice is set to 30℃ - 35 ℃
• Bubble Remove time: it is recommended that 30 seconds~1 minute (this time is the most appropriate)

Warning: External air compressor required, bubble remover must work with an outside air compressor

Packing list:

• 1 x M2 Remover Machine
• 1 x M2 sheet metal
• 1 x Air Hose (small)
• 1 x Air Hose
• 1 x Fitting
• 2 x Seals
• 1 x Foam
• 1-year warranty

Note: plug and voltage, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
