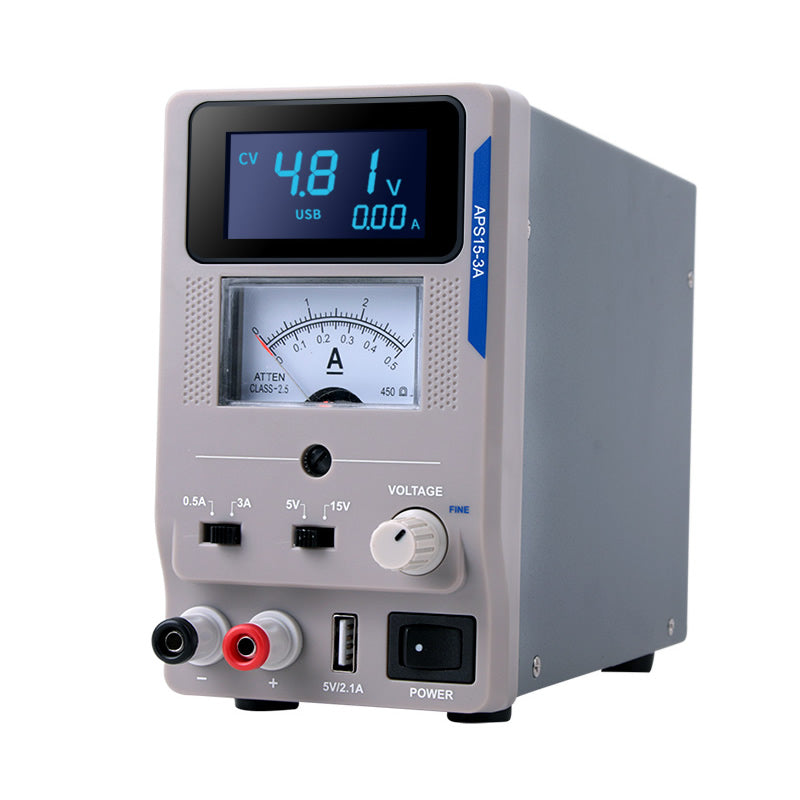

APS15-3A DC Regulated Power Supply 15V 3A
Model:APS15-3A
Quantity:
Features:
- Digital control, series adjustment mode control, low ripple, low noise, high stability;
- Double-type header design, more suitable for the use of communication equipment products
- Fast dynamic load response speed, optimized processing for communication equipment;
- The product is designed with cut-off self-recovery protection function and over-temperature protection function;
- Independent 5γUSB interface, providing 21A current output capability, with overcurrent,
- Short circuit protection function;
- Voltage and current dual gear switch, respectively, adapt to different equipment;
- Built-in voltage gear automatic adjustment function, which can better adapt to full load use;
- Digital encoder adjusts voltage, coarse adjustment and fine adjustment function switch, more precise control and longer life;
- With input adjustment and lock function, alarm prompt function, effectively prevent misoperation;
- Intelligent fan control automatically controls the temperature of the internal power device
Specification:
- Input voltage: AC240V/230V/220V/110V/120V optional
- Main output voltage: 0-5V/0-15V dual gear
- Main output current: 0.5A/3A dual gear
- Rated output power: 56W (including USB interface output
- Ripple and noise: CV≤0.5mvrms
- Power regulation rate: CV≤0.01%+3mV
- Load regulation rate: CV≤0.01%+8mV
- Read back accuracy: LCD meter head: ± (0.5 reading + 2 digits
- Current pointer meter head: CLASS-2.5
- Protection function: OCP (over current cut-off recoverable type) / OHP (overheat protection)
- Other functions: coarse adjustment and fine adjustment, 5V/15V switching, 0.5A/3A switching, parameter lock function
- USB interface: fixed 5V output (±5% accuracy, 2.1A maximum (overcurrent protection, cut-off output)
- Cooling method: intelligent temperature control air cooling
- Working conditions Temperature: 0~40°C Humidity: <80%
- Storage conditions Temperature: -20~70°C Humidity: <80%
- Size (LWH) 220*85*150 (mm)
