The laser marking machine, a device that utilizes high-energy laser beams to mark and engrave surfaces of various materials, has found widespread application in the engraving field. Beyond traditional black and white markings, modern laser marking machines now possess the capability to carve out colorful patterns, offering creators an expanded realm of artistic expression. This article aims to provide a detailed introduction on how to achieve colorful patterns using a laser marking machine, while emphasizing safety precautions during the operation.

Firstly, it is crucial to understand the basic principles and functions of a laser marking machine. The machine employs high-energy laser beams to locally heat the surface of the material, forming permanent marks through processes such as oxidation, vaporization, or melting. With technological advancements, laser marking machines can now perform not only simple text and numerical markings but also intricate patterns and even colorful designs.

To create colorful patterns, the key lies in the parameter settings of the laser marking machine. Here are some crucial parameters that require special attention:

  1. Power Settings: The power level directly influences the depth and color of the engraving. Different materials require distinct power settings. Generally, higher power levels result in deeper and darker colors.
  2. Speed Adjustment: The engraving speed also affects the color intensity. Too fast a speed may lead to lighter colors, while too slow a speed can cause excessive burning of the material.
  3. Frequency and Pulse Width: These parameters determine the pulse characteristics of the laser beam, which are crucial for color formation. Fine adjustments are required based on the specific properties of the material.

Additionally, some advanced laser marking machines are equipped with color management systems. Users can directly select the desired colors through this system, and the machine will automatically adjust the parameters to achieve the expected results.

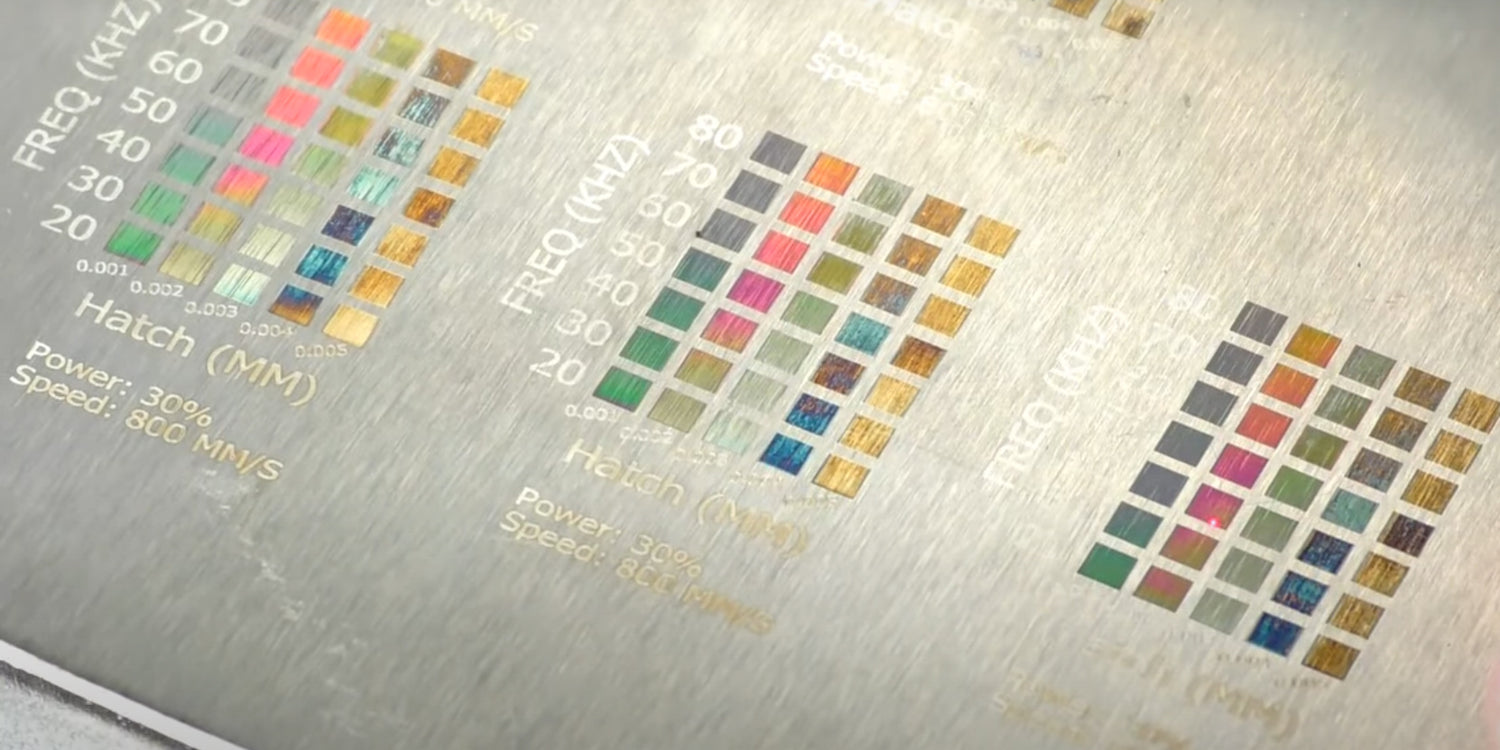

Practical applications demonstrate the versatility of this technique. For instance, on stainless steel, by adjusting the parameters of the laser marking machine, it is possible to create gradient color effects ranging from light to dark, or even simulate a multicolored rainbow effect. This technology finds widespread use in personalized jewelry, artworks, and other fields.

However, safety should always be the top priority when operating a laser marking machine. Here are some essential safety measures to follow:

  1. Wear Protective Eyewear: Laser beams are harmful to the eyes, so it is crucial to wear specialized protective eyewear during operation.
  2. Avoid Direct Contact with the Laser Beam: The laser beam possesses extremely high energy and direct contact can cause skin burns.
  3. Ensure Adequate Ventilation: The laser marking machine generates smoke and odor during operation. It is essential to ensure good ventilation in the workspace.
  4. Regular Maintenance: The laser marking machine requires regular maintenance and inspections to ensure its stability and safety.

In conclusion, creating colorful patterns with a laser marking machine is both an enjoyable and challenging task. Through appropriate parameter settings and meticulous operation, we can create colorful and vibrant works of art. Nevertheless, safety must always be taken into account during the entire process. I hope this article provides useful guidance for beginners and enthusiasts with some experience.
