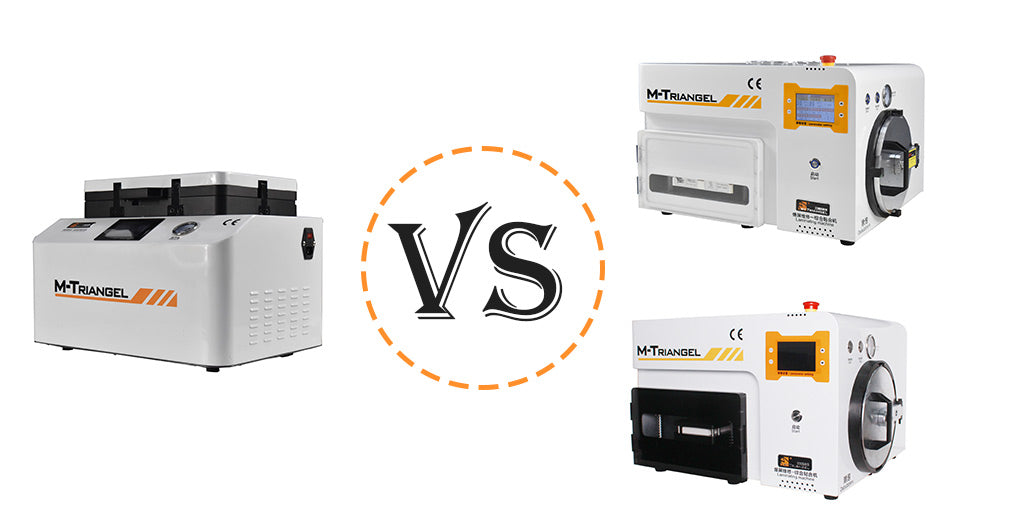

MT-102, MT-103 and MT-12 are OCA laminating and bubble removal machine all-in-one mobile display repair equipment, they use the same air pump, it is a dual-purpose pump, including air compressor and vacuum machine, excellent application performance.
MT-102 parameters
Lamination type: Edge and flat laminating
Suitable size: ≤ 9" (20*16 cm)
Laminating time: 1 minutes
Defoaming time: 8-10 minutes
Lamination temperature: 35℃~45℃
Cabin size: Depth 180mm, Diameter 120mm
Machine size: 535*425*355mm
Net weight: 56.5kg
MT-103 parameters
Lamination type: Edge and flat laminating
Suitable size: ≤9" (20*16 cm)
Laminating time: 1 minutes
Lamination temperature: 35℃~45℃
Defoaming time: 8-10 minutes
Equipment size: 570*420*360mm
Cabin size: Depth 180mm,Diameter 120mm
Lamination temperature: 35℃~45℃
Net weight: 56.5KG
MT-12 parameters
Lamination type: Flat laminating
Suitable size: ≤12" (28*19 cm)
Laminating time: 1 minutes
Lamination temperature: 35℃~45℃
Defoaming time: 8-10 minutes
Equipment size: 490*360*350mm
Net weight: 36.6kg
MT-102 and MT-103 both support LCD repair up to 9 inches, with separate laminating and bubble removal compartments, and a 17cm deep, 16cm diameter autoclave that can accommodate multiple screens. The MT-103 has a removable metal plate, which can be removed so that we can use a specific metal mold to laminate mobile screen. MT-102 can also laminate the Edge screen, but you need to buy a curved rubber pad, and it can't use metal molds.
MT-103 has dual pressure channel, it is equipped with a button for pressure switch on the back. When using a metal edge mold to laminate the curved screen, we can quickly switch to the high pressure position.
We can see that MT-103 is more suitable for Edge screen lamination, In a word, MT-103 is the upgrade version of MT-102.
MT-12 has a platform on the top for placing LCD, and its lamination operation and bubble removal operation are done here. Compared with MT-102 and MT-103, you can't operate multiple LCDs at once to remove bubbles. It has the advantage of supporting devices up to 12 inches, and can be used to repair iPad and other tablets, and its price is affordable, about $300 cheaper than MT-102. Note that MT-12 is not compatible with Eege rubber pads.
Summary: MT-102 and MT-103 are suitable for 9-inch flat panel and Edge screen laminating, with large bubble removal box and high efficiency. MT-12 is suitable for flat panel screen only and can repair iPads within 12 inches
Through the above analysis, do you understand the difference between them, which one would you choose?
