M-T CP-301 Mini Solder Fume Extractor Smoke Absorber
M-T CP-301 Mini Solder Fume Extractor Smoke Absorber
M-T CP-301 Mini Solder Fume Extractor Smoke Absorber
M-T CP-301 Mini Solder Fume Extractor Smoke Absorber
M-T CP-301 Mini Solder Fume Extractor Smoke Absorber
M-T CP-301 Mini Solder Fume Extractor Smoke Absorber


M-T CP-301 Mini Solder Fume Extractor Smoke Absorber

Sale price$119.99 Regular price$139.99
Save $20.00
Optional:Full Set


M-Triangel CP-301 is a portable mini soldering fume extractor, which is suitable for fume filtration during electronic repair and soldering, and also for fume filtration during laser cutting.

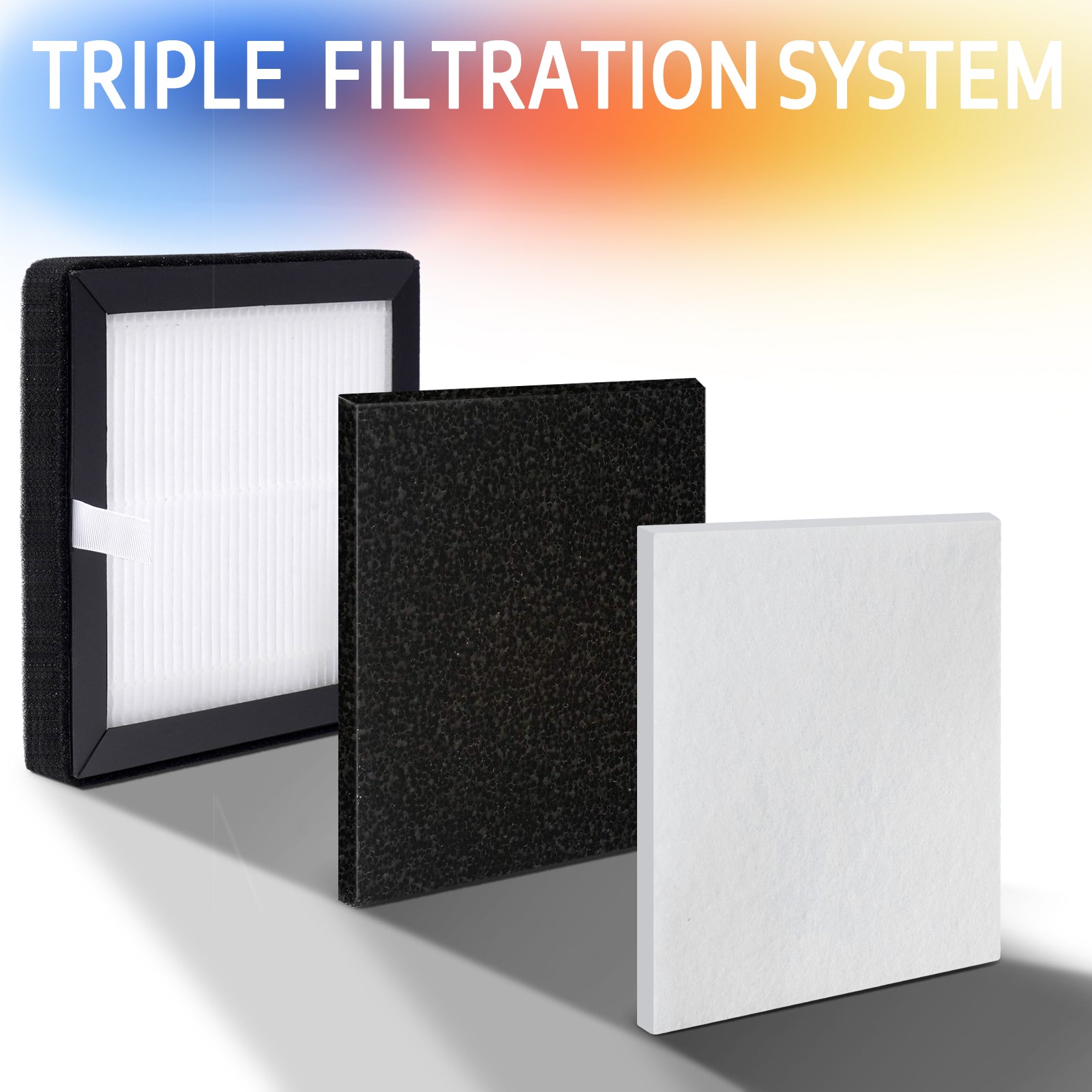

  1. Triple Filtration System

    Experience the power of our Triple air filtration system, equipped with a High-Density Pre-Filter, Efficient HEPA Filter and Activated Carbon Filter. This dynamic combination effectively eliminates 99.99% of large dust particles, tiny impurities, and harmful gases, ensuring cleaner and healthier air.

    With a remarkable filtration lifespan of over 945 hours, you can enjoy continuous and efficient air purification without any interruption.

    As a token of our commitment to your satisfaction, we also provide an additional air filter, alleviating any concerns about the effective lifespan of your air purification system.

    Restassured, we are dedicated to providing you with exceptional and uninterrupted service!

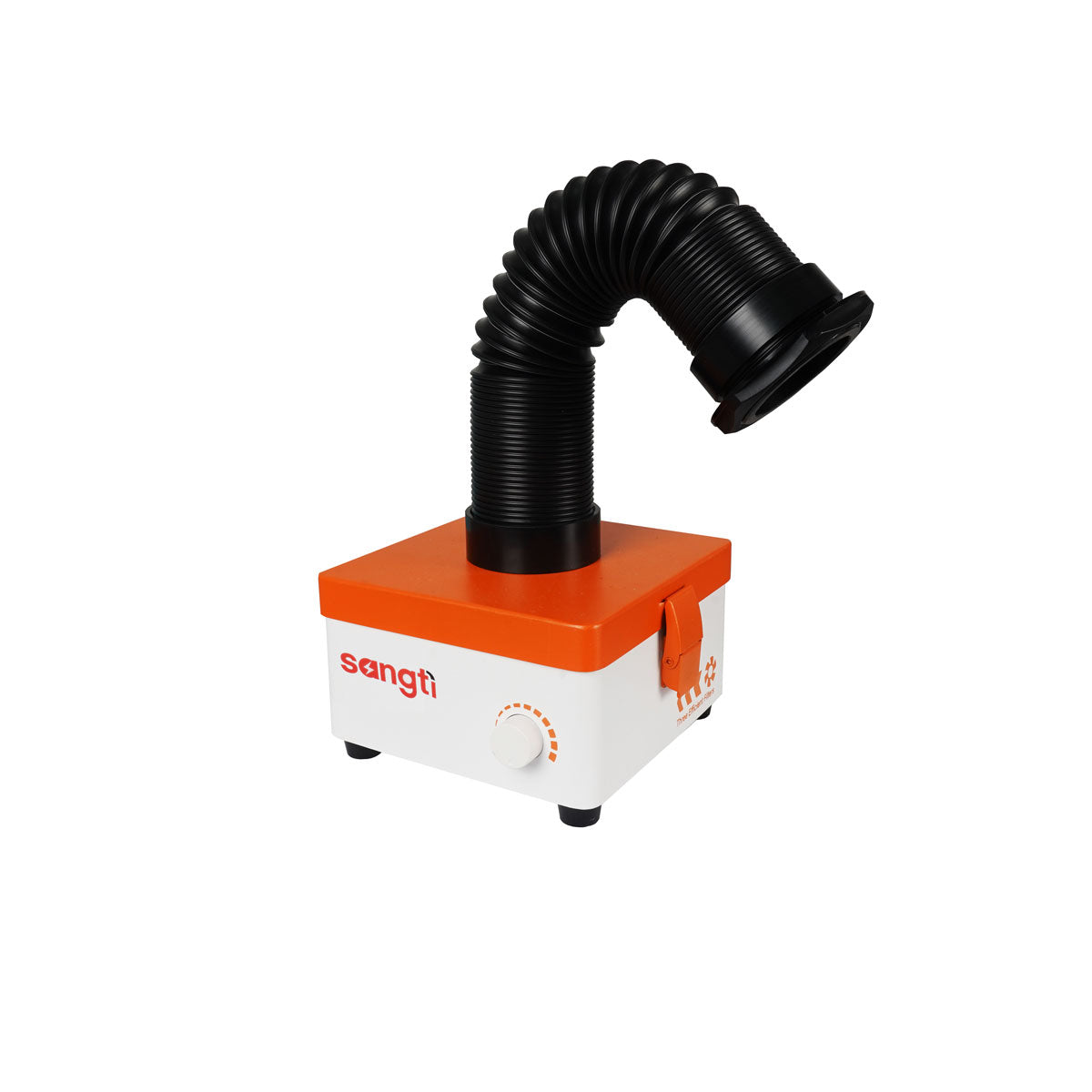

  2. 360° Adjustable Smoke Extraction Hose

    Made from Reliable and high-temperature resistant polymer PC material, our smoke extraction hose features a robust construction that provides strong support and excellent sealing performance.

    Its flexible design allows for easy adjustment of angles and lengths. Ensuring a clean and professional soldering workbench.

    Experience the convenience and professionalism it brings to your workspace!

  3. Sturdy And Reliable Metal Casing

    Crafted with automotive sheet metal technology, the metal casing of our product is capable of withstanding temperatures exceeding 2500°F, while providing superior resistance to impacts of over 400 pounds.

    This ensures a stable and robust environment for the motor fan, minimizing noise transmission and facilitating rapid heat dissipation.

    With a main unit weighing over 2.6 lb, The quality and durability are unmatched !

Product Parameters:

  • Body size: 153*153*76.5 mm
  • Power: 15W
  • Noise: ≈60dB
  • Interface diameter: 6 cm
  • Filter layer: three layers
  • Air volume: 1.5 m³/min
  • Speed: 3800PRM/Min
  • Package size: 33* 30 *21CM
  • Gross weight: 2.7 kg


Packing list:

  • 1 x CP-301 Fume Extractor
  • 5 x Fiber cotton
  • 1 x Expansion tube
  • 1 x Manual
  • 1 x Transparent shield (optional)
  • 1-year warranty

Warning !

When using an electric soldering iron for soldering, toxic substances and smoke may be produced, including :

Lead fumes : Solder contains a high amount of lead, which can be converted into tiny particles and form lead fumes during the soldering process. Inhaling lead fumes can have harmful effects on the nervous system and blood.

Fluorides : Solder fumes may contain fluorides, especially when using solder wires that contain fluorides. Inhaling excessive fluorides can have negative impacts on the respiratory system and skeletal structure.

Volatile Organic Compounds (VOCs) : Soldering can release volatile organic compounds such as benzene, toluene, and xylene. These compounds have potential risks to the respiratory and central nervous systems.

Therefore when using an electric soldering iron, It's recommended to use professional fume extractor with better filtration efficiency And replace the filter element in time to safeguard your health.


Note: plug and voltage, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
