M-Triangel

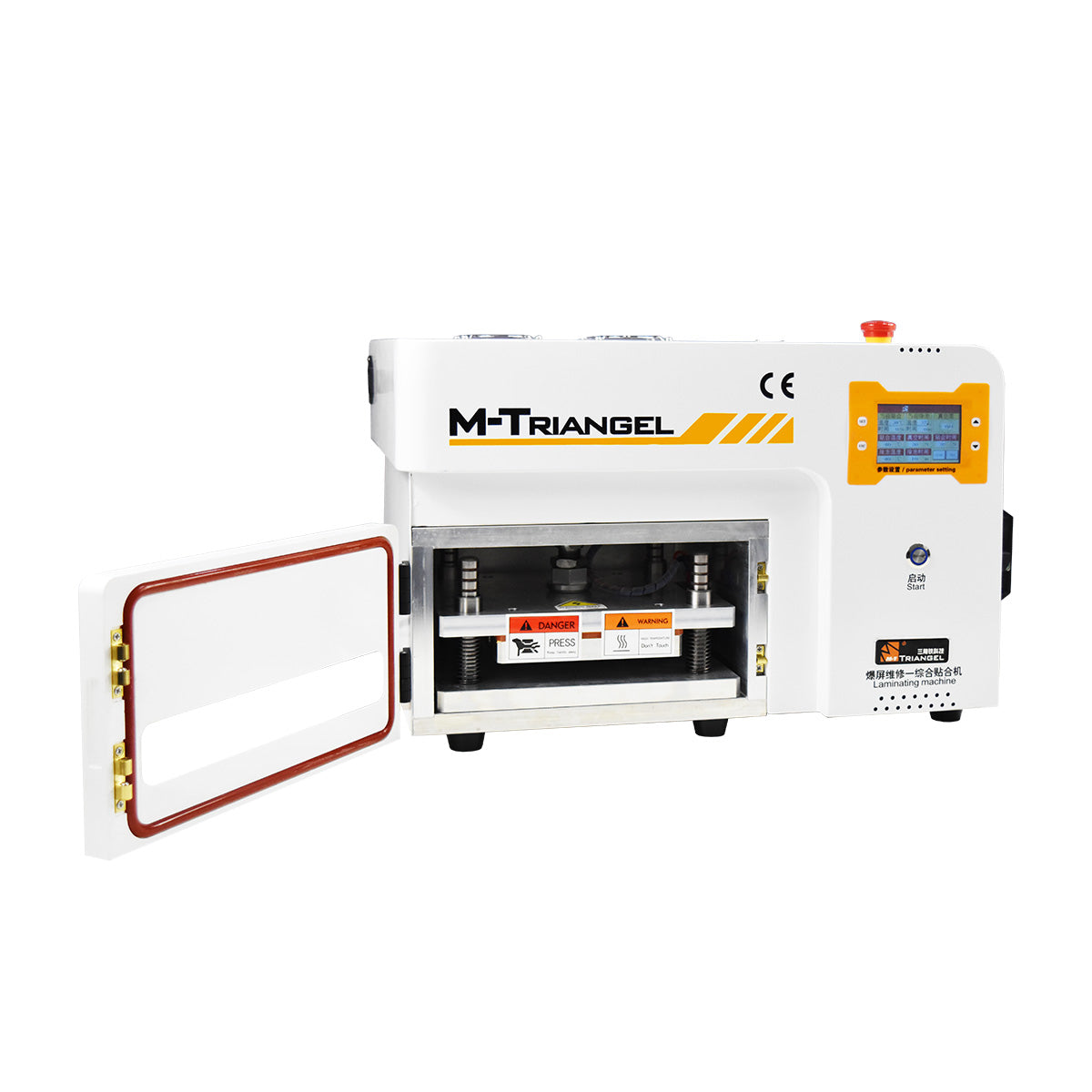

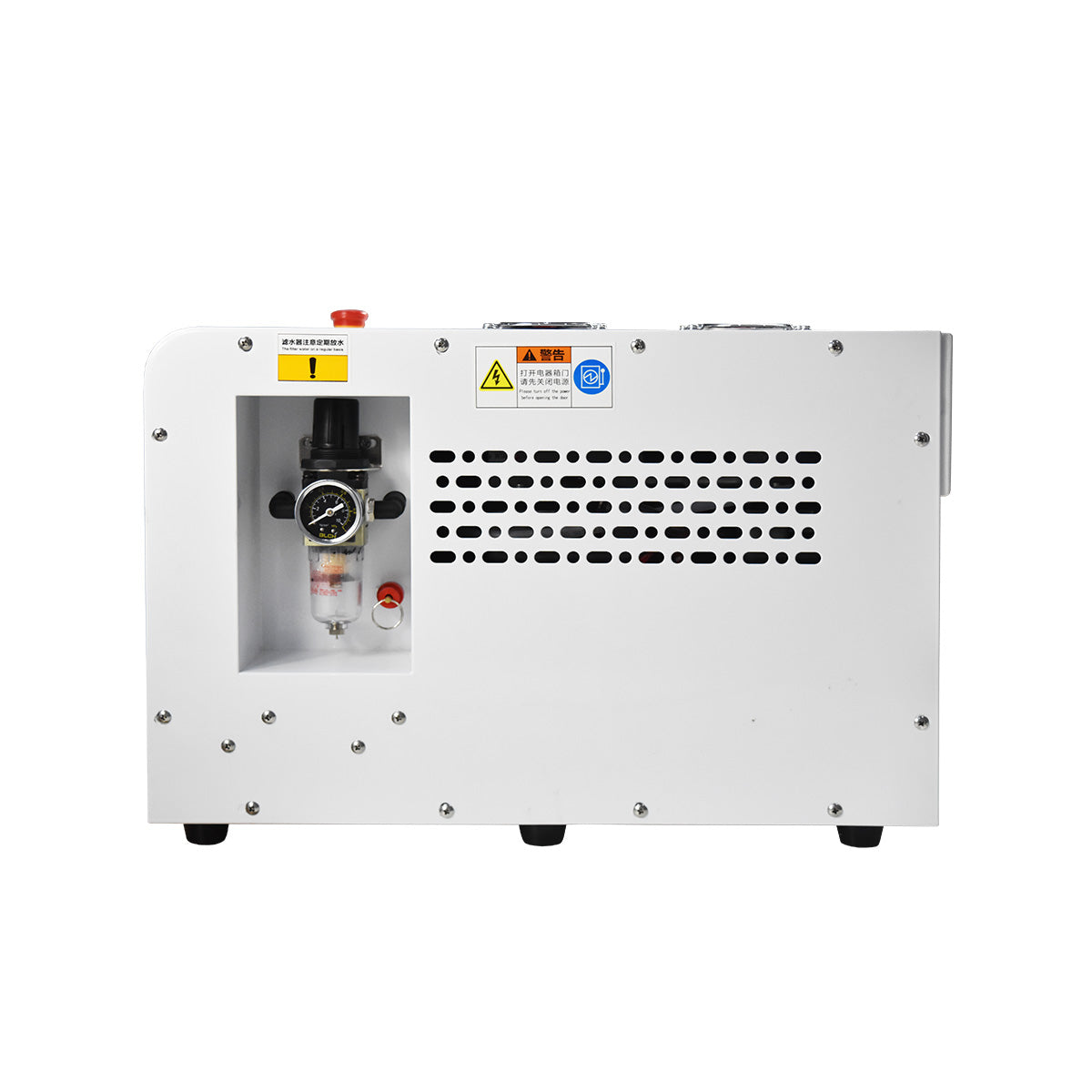

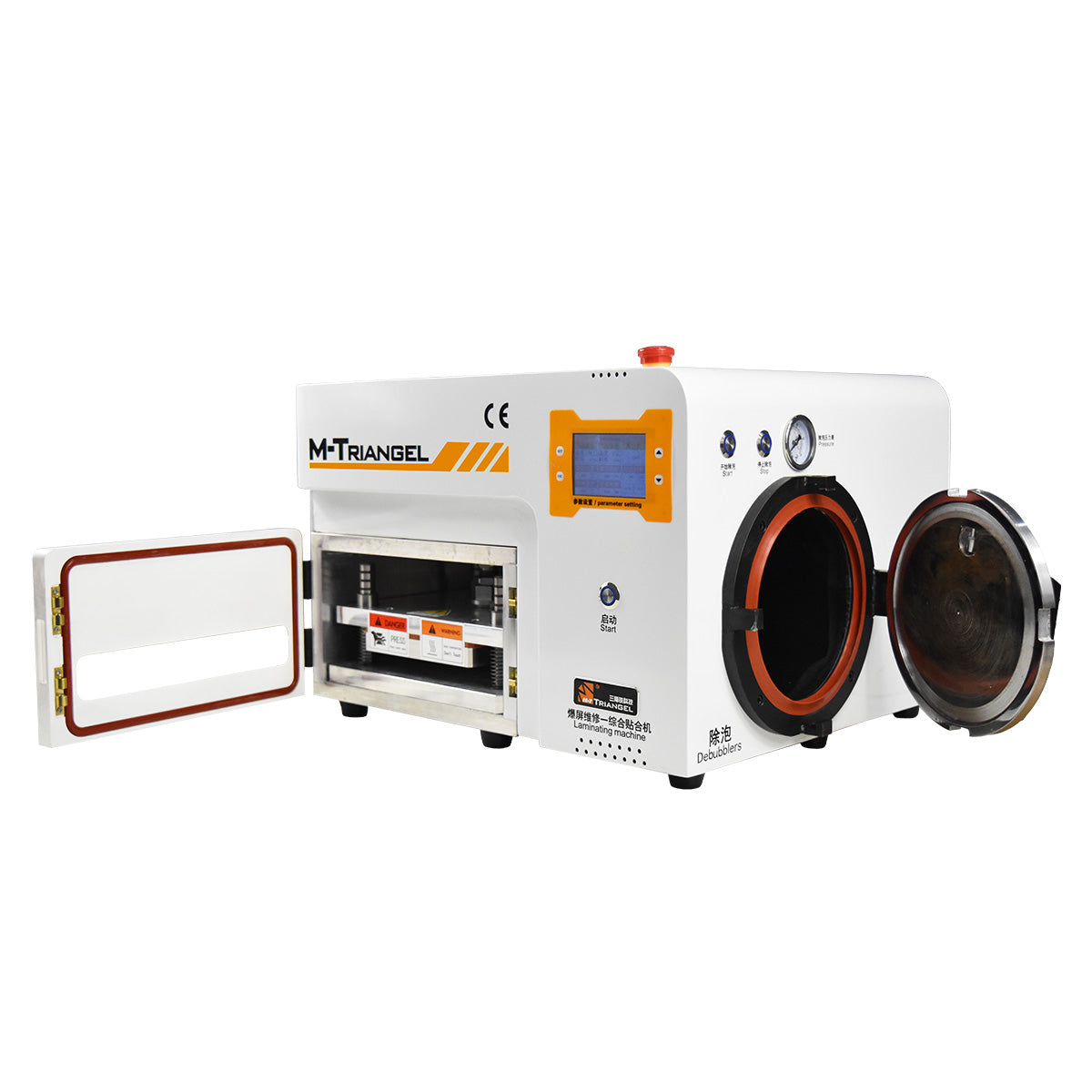

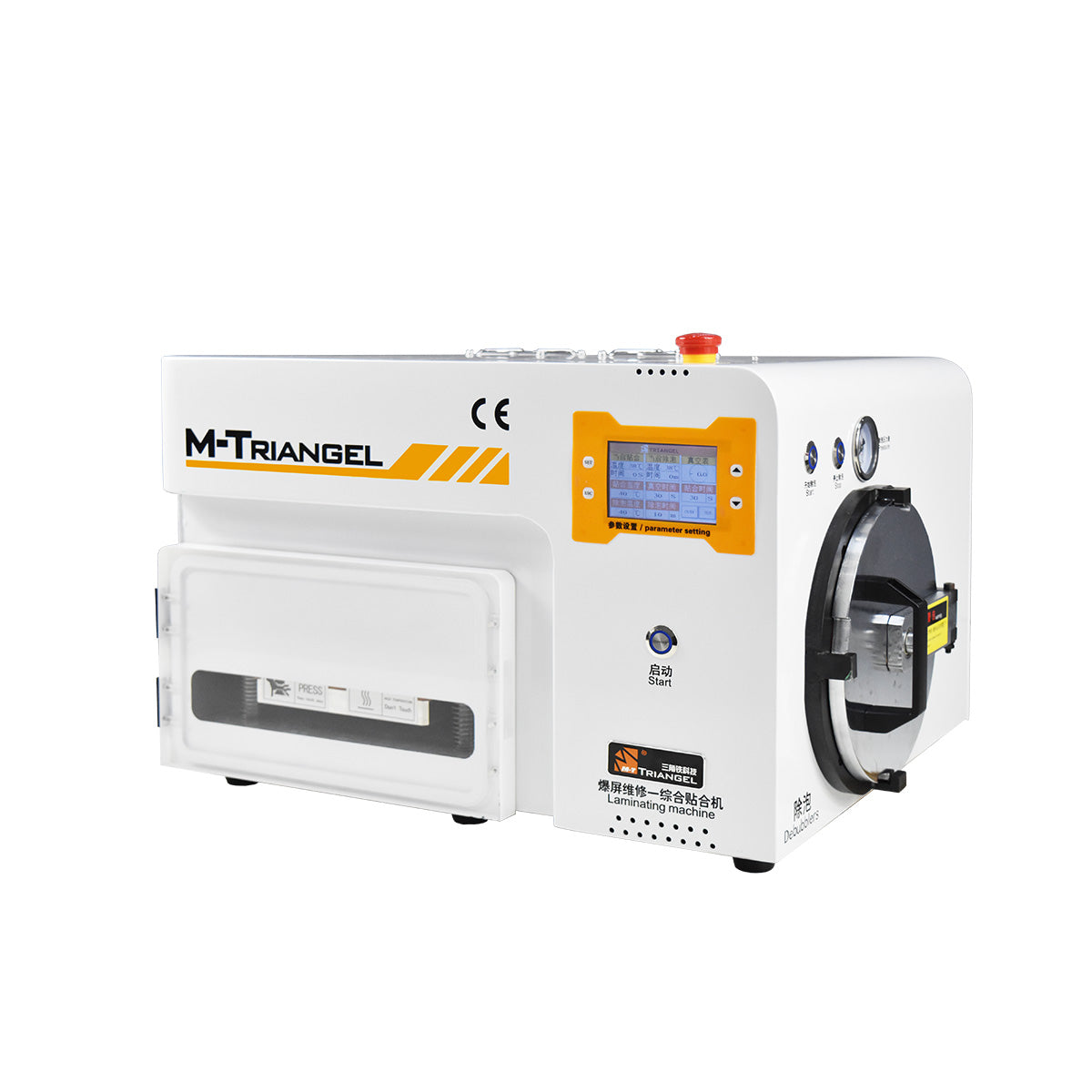

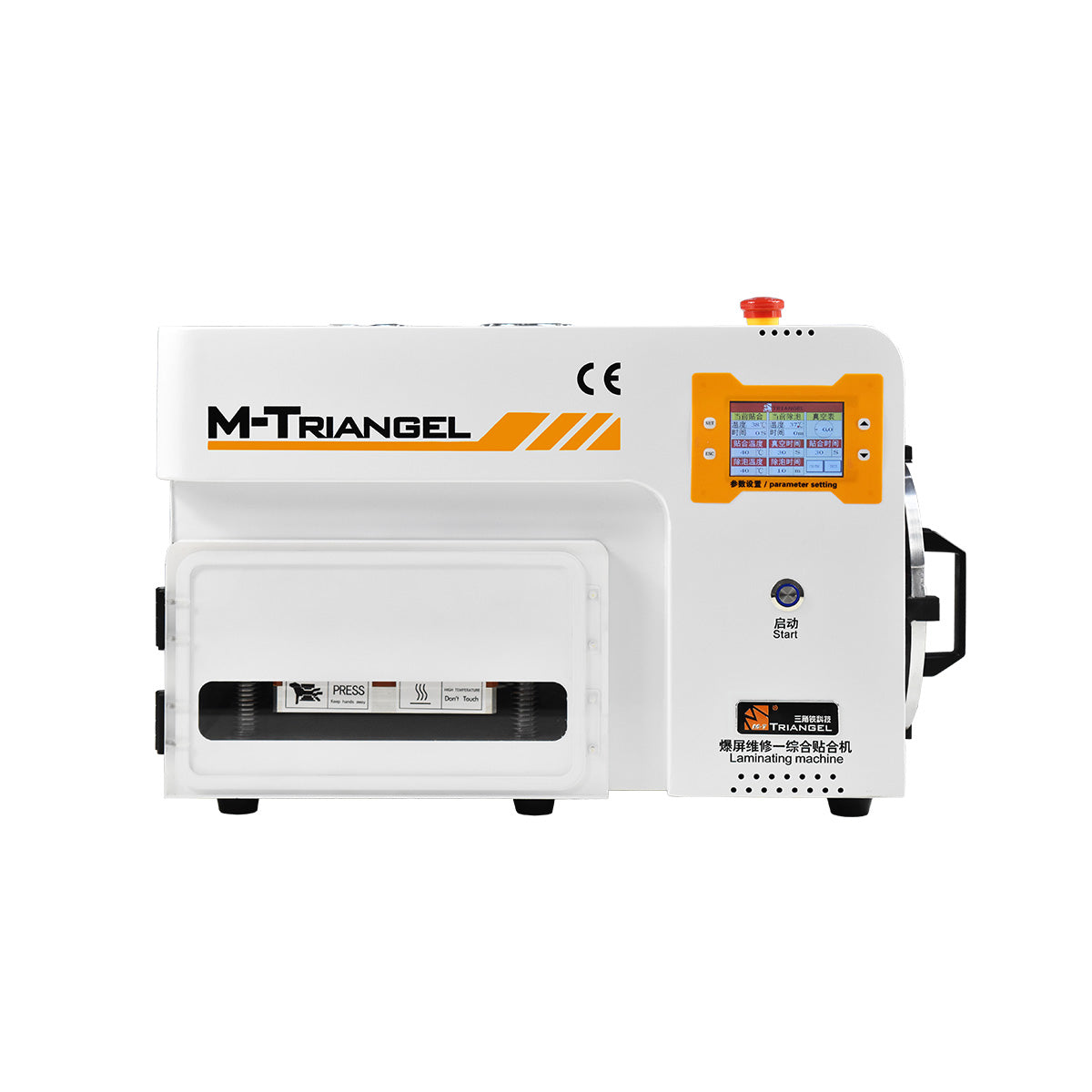

MT-102 LCD OCA Lamination and Bubble Remover Machine

Sale price$829.00 Regular price$949.00
Save $120.00
Voltage:110V
Quantity:

MT-102 is a high quality all-in-one LCD repair equipment for phone screen crack repair. It has a built-in combination air compressor and vacuum pumps, and a OCA laminator and a bubble remover, and supports mobile display fix within 7", suitable for iPhone, Samsung, Xiaomi, HTC, Motorola, OPPO, VIVO, Sony and almost all mobile phone.

Support curved screen, it is recommended to buy Edge mats here>>


Features:

  1. Stable quality, one-key bonding, one-key defoaming, excellent working effect.
  2. All-in-one machine, laminating, defoaming, combination air compressor and vacuum pumps.
  3. For LCD, LED, OLED OCA laminating, air bubbles removal
  4. Dual cooling fans, high-strength safety air pressure hatch door design
  5. 12 months warranty, online technical support and training is provided



Specification:

  • Lamination way: Flat-plate lamination type
  • Lamination time: 30-60s,
  • Lamination temperature: 35-45℃
  • Heating mode: constant temperature heating
  • Defoaming time: 1~10 minutes
  • Lamination LCD size: up to 9 inches (20*16cm)
  • Device size: 535*425*355 mm
  • Input voltage: AC110V /AC220V
  • Device power: 800W
  • Net weight: 56.5 KG
  • Shipping weight: 65 KG



Bubble Remove parameters:

  • Cabin size: Deep 170 mm, Diameter 160 mm (Can hold 15 pieces 7" LCDs at the same time)
  • Working temperature: Suggested set 35℃~45℃ (can be adjustable according to different OCA temperatures)
  • Bubble Remove time: Suggested 10 minutes



Packing list:

  • 1× MT-102 Laminating and Bubble Remove Machine
  • 1× KO1 Sheet Metal
  • 2× laminating mat
  • 2× Sealing ring
  • 1× MT-17 wooden case
  • 1× Instruction manual
  • 1-year warranty

Note: plug and voltage, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
