M-Triangel

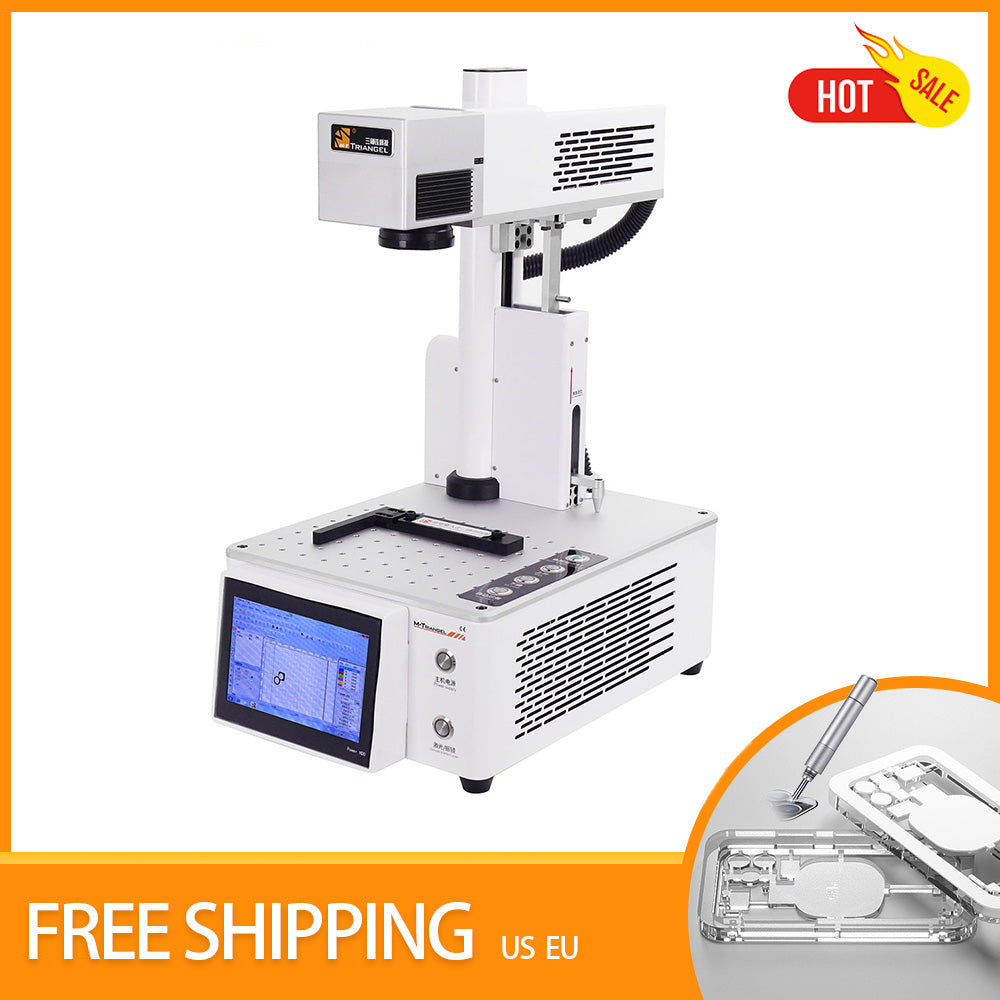

PG-OneS Laser Machine with iPhone Molds Set
This is a free shipping bundled sales discount package, including PG-oneS Fiber Laser Machine + iPhone Protection Molds Set (17 pieces) + Glass Breaking Pen.
PG-oneS is a fiber laser machine built-in mini computer, with M-Triangel iPhone protection molds, it's easier to remove the iPhone back glass, you don't need complicated drawing calibration, simply cover the laser work area with a protective mold and begin the laser removal of glass and adhesive.
Tip: For a larger display, please turn off the built-in computer and use the printer cable (USB-B) to connect to an external computer
PG-oneS Laser Machine Specification:
- Laser power: 8W / 20W
- Focus method: automatic
- Field lens: F=254
- Scan Range: 175 mm*175 mm
- Working temperature: -10℃~65℃
- Marking accuracy: ≤0.001 mm
- Repeat accuracy: ≤0.00 mm
- Marking speed: ≤10000 mm/s
- Marking depth: 0.015~0.5 mm
- Cooling method: built-in air cooling
- Laser wavelength: 1064 nm
- Marking line width: 0.05~0.01 mm
- Power supply: 220V/110V±10%, 50HZ±5%
- Language: Chinese, English, Spanish, French, German, Italian, Russian, Japanese, Korean, Arabic
- Net weight: 21.2KG
- Package weight: 45KG

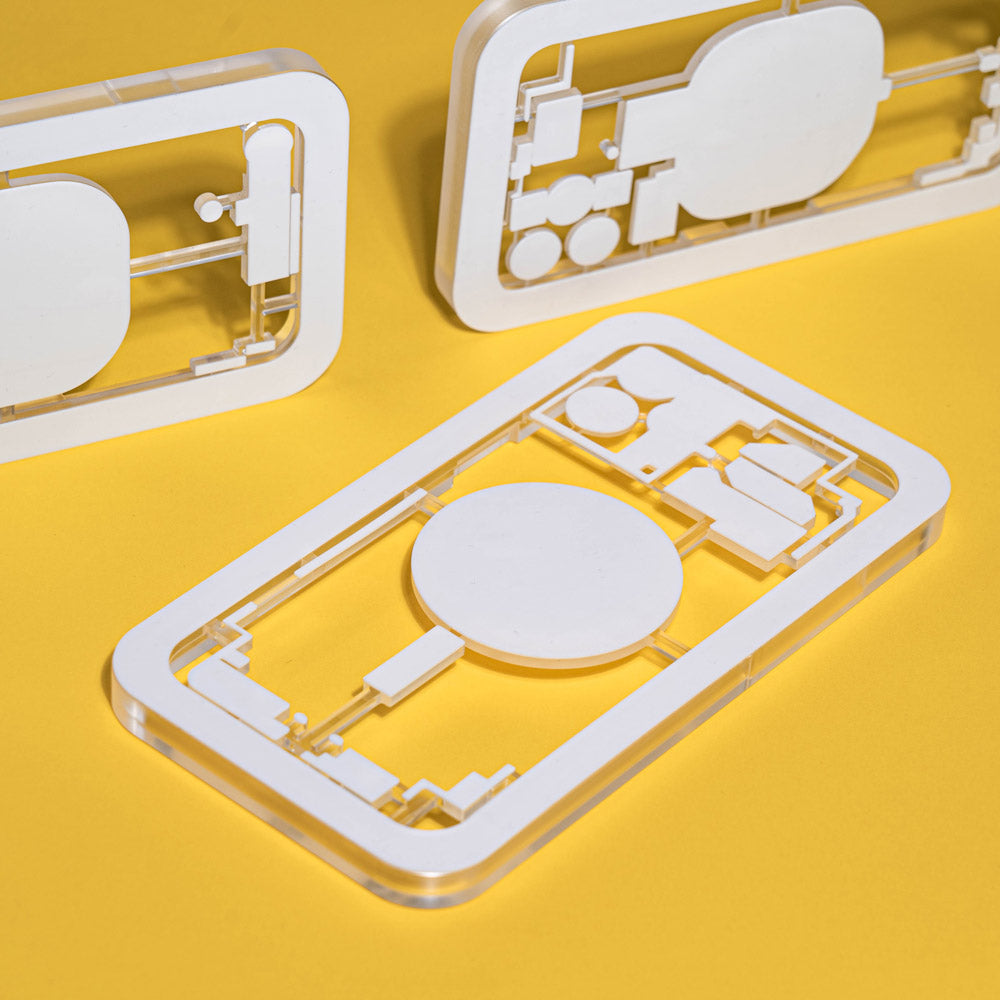

iPhone Mold Specification:
iPhone 13 Pro Max, iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone SE 2, iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8 (SE2)
Packing list:
- 17 x iPhone protection molds

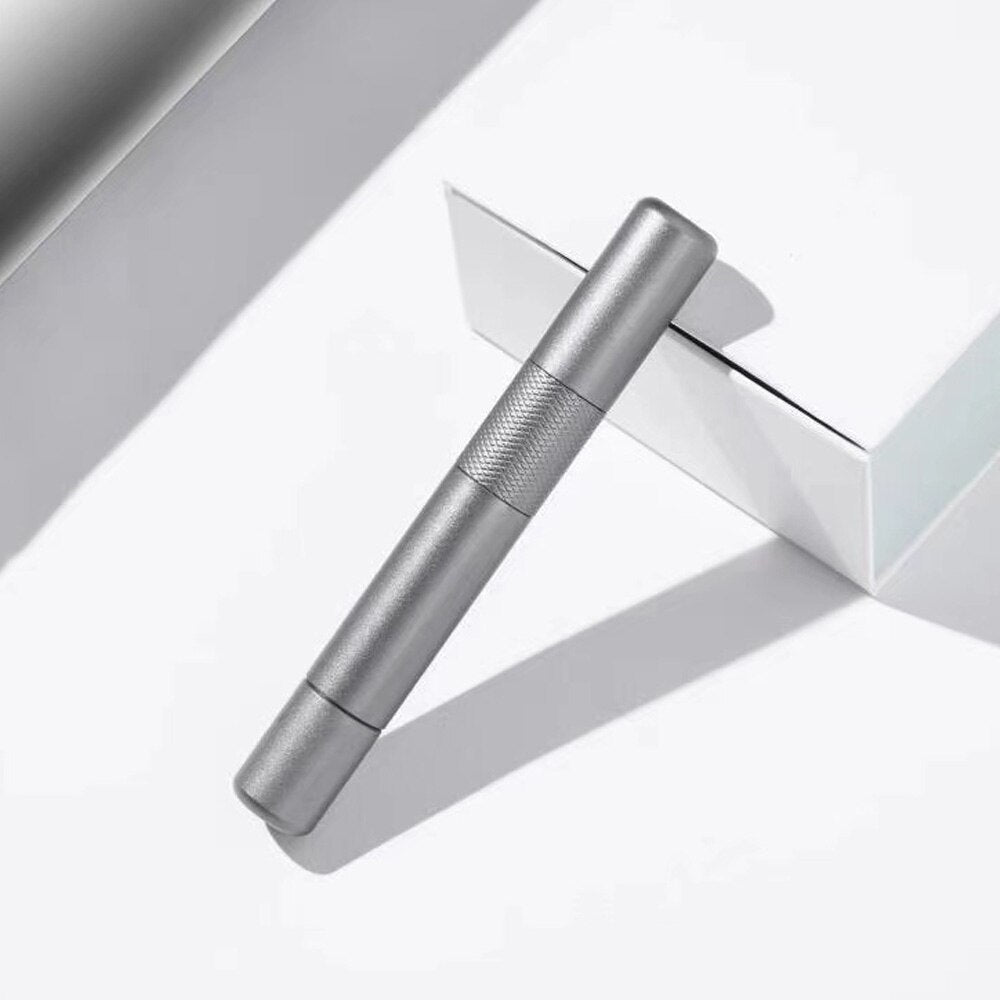

- 1 x Glass Breaking Pen
- 1 x PG-oneS Laser Machine
- 1 x USB Cable
- 1 x USB Amplifier
- 1 x Hexagonal wrench
- 1 x Steel ruler
- 1 x Transparent ruler
- 2 x Correction paper
- 10 x Focusing piece
- 1 x Computer keyboard
- 1 x Computer mouse
- 1 x Foam
- 1-year warranty
Note: The 20 watt laser is customized product, the delivery time needs to wait 5-10 days
Note: about plug, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
