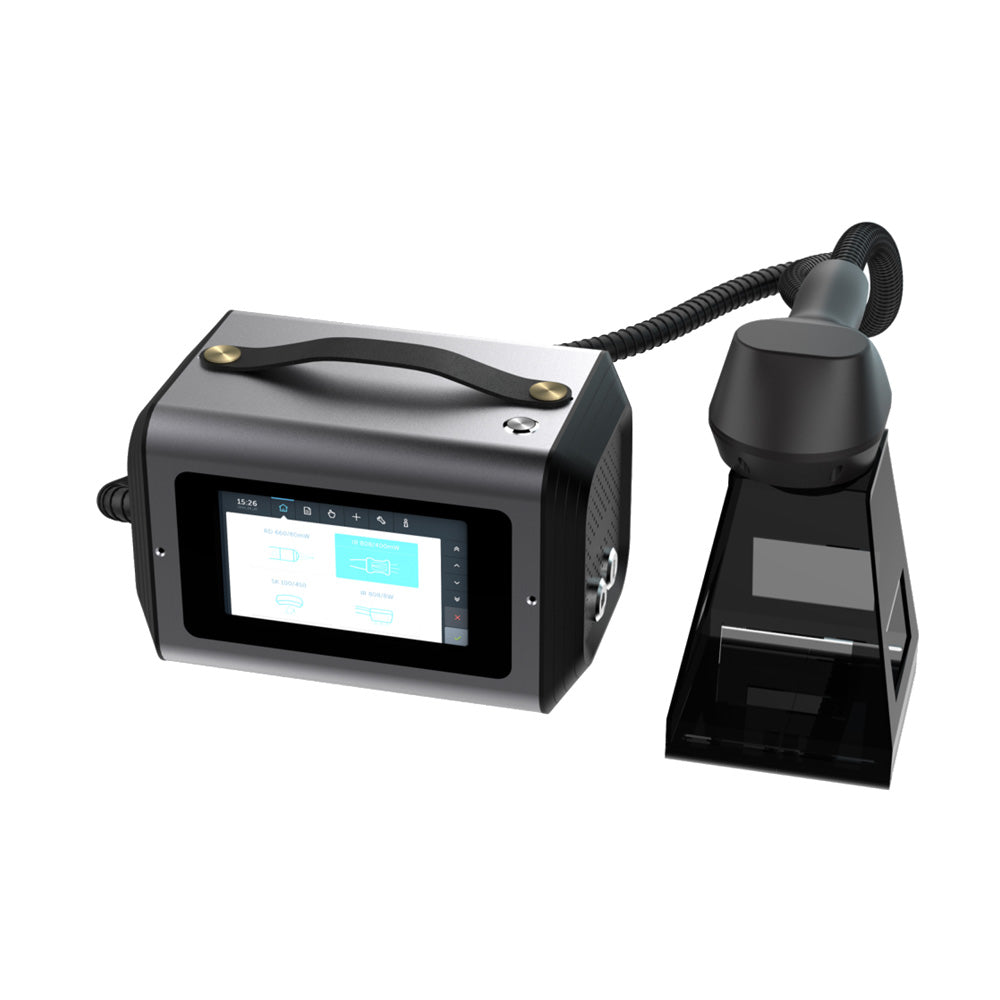

M-Triangel
20W Portable Handheld Fiber Laser Marker
M-Triangel portable handheld fiber laser marking system is designed to solve the problem of laser marking of existing large parts. The whole machine is small and convenient, the laser head can be hand-held for operation, and it can perform laser marking on large mechanical parts in any direction.
Handheld laser marking machines are ideal for marking flat metal and non-metal surfaces and are an excellent solution for permanent, high contrast and detailed marking.
Equipped with a high-precision two-dimensional scanning head. Laser etching is completed within 20 seconds, achieving fast marking.
Note that this machine does not contain batteries and needs to be plugged in for use
Features
- Small size, easy to move at any time.
- All-aluminum body, anti-corrosion and anti-rust.
- Comes with touch screen, no need to connect another computer.
- Intelligent touch screen operation, easy to operate.
- For a wide range of marking materials and various forms of marking content.
Suitable for a variety of materials
SMC, PC+ABS, SU201, SU304, Galvanized Steel Sheet, painted carton, etc.
Specification
- Laser power: 20w
- Laser wave length: 1064nm
- Marking accuracy: 0.001mm
- Repeatability: 0.001mm
- Marking speed: <10000mm/s
- Marking depth: 0.015-0.5mm
- Cooling method: Built-in aircooling
- Marking area: 100mmx100mm
- Marking line width: 0.05-0.01mm
- Equipment size: 295*185*185(mm)
- Packing size: 465*425*255(mm)
- Equipment weight: 6KG
- Gross weight :9kg
