Auto Focus 20W Fiber Laser Marking Machine for Metal Jewelry Engraving
Auto Focus 20W Fiber Laser Marking Machine for Metal Jewelry Engraving
Auto Focus 20W Fiber Laser Marking Machine for Metal Jewelry Engraving
Auto Focus 20W Fiber Laser Marking Machine for Metal Jewelry Engraving
Auto Focus 20W Fiber Laser Marking Machine for Metal Jewelry Engraving

M-Triangel

Auto Focus 20W Fiber Laser Marking Machine for Metal Jewelry Engraving

Sale price$1,989.00
Voltage:110V
Quantity:

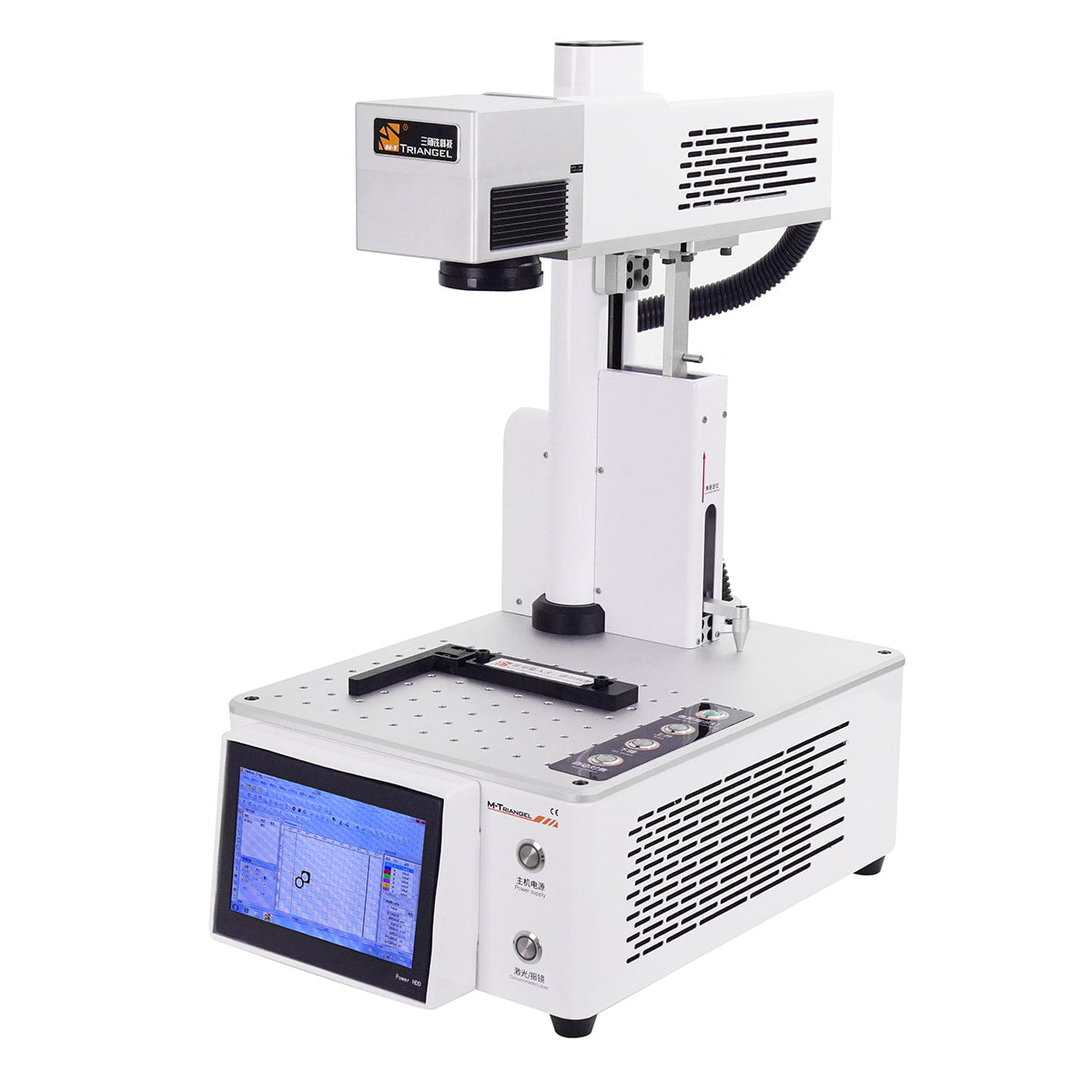

M-Triangel 20W entry-level laser marking machine with mini computer and autofocus, suitable for marking steel, iron, aluminum and other hard plastic.


Tip: For a larger display, please turn off the built-in computer and use the printer cable (USB-B) to connect to an external computer


Features:

  1. High-quality fiber laser source, long service life
  2. Builtin mini computer and comes with software, easy for operating
  3. iPhone back glass separation: iPhone 8 - 14 Pro Max
  4. Engraving metal materials: gold, silver, stainless steel, copper, aluminum, chrome brass, metal, etc.
  5. Engraving non-metallic materials: silicon wafers, ceramics, plastics, rubber, epoxy resin, ABS, ink, electroplating, spraying, and coating.

Laser machine details

What can the fiber laser machine do?

Metal: stainless steel, carbon steel, alumina, aluminum alloy, aluminum, copper, iron and other metal materials.
Plastic: hard plastic, ABS, PVC material, etc. (due to different components, actual testing is required)
Industry: Nameplates, metal/plastic accessories, hardware, jewelry, metal spray paint surface, glazed ceramics, purple sand pots, painted cartons, melamine wood boards, mirror paint, graphene, chips, cans, etc.

laser marking object

    Specification:

    • Laser type: fiber
    • Laser power: 20W
    • Laser wavelength:1064nm
    • Focus method: automatic
    • Field lens: F=254
    • Scan Range: 175 mm x 175 mm
    • Probe height: up to 50mm
    • Working temperature: -10℃~65℃
    • Marking accuracy: ≤ 0.001 mm
    • Repeat accuracy: ≤ 0.00 mm
    • Marking speed: ≤ 10000 mm/s
    • Marking depth: 0.015~0.5 mm
    • Cooling method: built-in air cooling
    • Marking line width: 0.05~0.01 mm
    • Power supply: 220V/110V±10%, 50HZ±5%
    • Device power: ≤ 800W
    • Net weight: 21.2KG
    • Package weight: 45KG



      Packing list:

      • 1 x BY4 Laser Machine
      • 1 x USB Cable
      • 1 x USB Amplifier
      • 1 x Hexagonal wrench
      • 1 x Steel ruler
      • 1 x Transparent ruler
      • 2 x Correction paper
      • 10 x Focusing piece
      • 1 x Computer keyboard
      • 1 x Computer mouse



      Note: about plug, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
