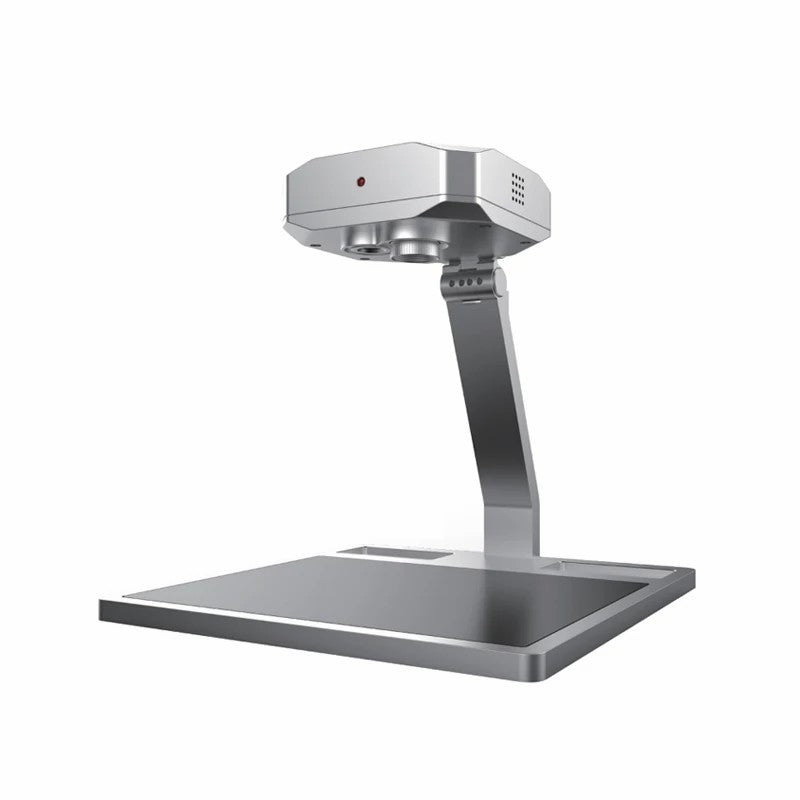

SuperCam Infrared Thermal Imaging Camera PCB Fault Fast Diagnostics

SuperCam Thermal Camera for Mobile phone Motherboard PCB Fault detection, use one-button power cord to supply power to the motherboard, adjust the display mode to thermal imaging mode, and enable the software quick check function to detect faulty parts.

Mobile phone Motherboard PCB Fault detection instrument, Optional network cable to USB interface adapter. It can be connected to the computer USB interface through the adapter, which is more convenient to use and avoids the network cable interface being occupied.

Applicable motherboardsCan detect all models and brands of cell phone motherboards and other products with motherboards

Features.

1. Maximum temperature range
2. Maximum temperature in the test area
3. Minimum temperature in the test area
4. Minimum temperature range
5. Adjustable angle of visible light camera
6. Can adjust the fusion of infrared thermal imaging and visible light image, so that the image is more clear
7. Display mode can be switched
8. Can capture the images taken by PCB and save the data of infrared imaging
9. Can record the images taken by PCB and save the data of infrared thermal imaging
10. Turn on quick check to find the hottest place quickly

Specification

• Network interface: RJ45
• Input power supply voltage: 12VDC
• Power consumption: 2.2W ( 3W)
• Temperature measurement distance: 12.5cm
• Temperature measurement range: 0 ° ~ 400 ° C

Packing List:

1. Thermal Imaging Host
2. Thermal Imaging Holder
3. Thermal Imaging Base
4. Power Adapter
5. Network Cable
