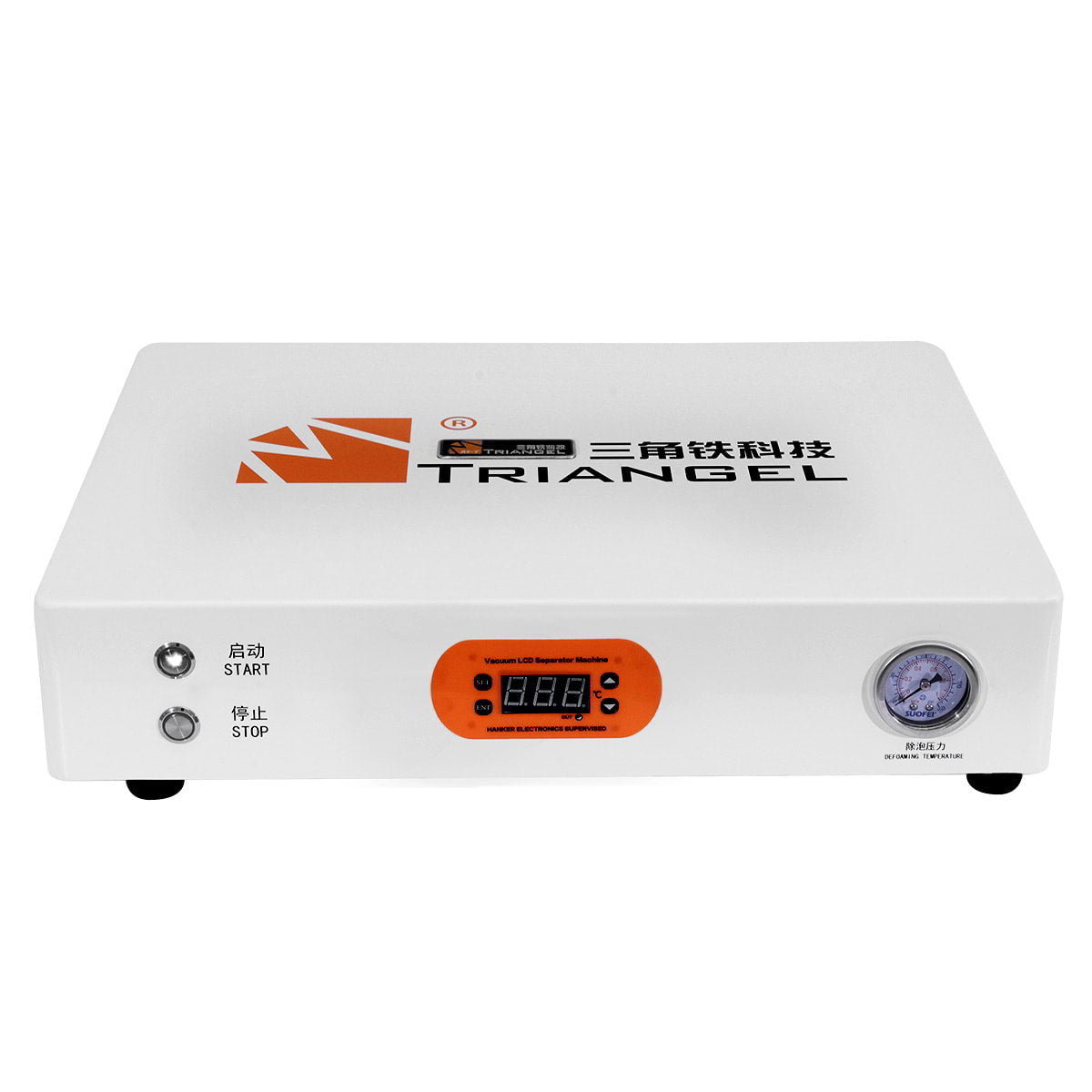

M1-Max 14-inch Air Bubble Remove Machine

M1-Max is a bubble remover based on the M1 upgrade, which supports up to 14-inch LCDs and perfectly supports iPad Pro screen repair. M1-Max offers a larger size platform, 30 seconds efficient air bubble removal, additional air compressor required.

Three "1 second": 1 second to pump up, 1 second to deflate, 1 second to open and close the hatch.

Note: External air compressor required

Specification

• Power supply: AC220V/ AC110V
• Suggested defoaming temperature: 30-40°C

• Suggested bubble removal pressure: 100PSI
• Efficiency: no stent for 30 seconds per piece, with stents 60 seconds per piece
• Constant temperature of board
• Applicable size: ≤14 inches device
• N.W / G.W: 12.46KG/13.7KG
• Packing size: 53*42*18CM
• Packing weight: 15KG

Packing List

• 1 x M1-Max Bubble Remove Machine
• 1 x Pipeline
• 1 x Seal Ring
